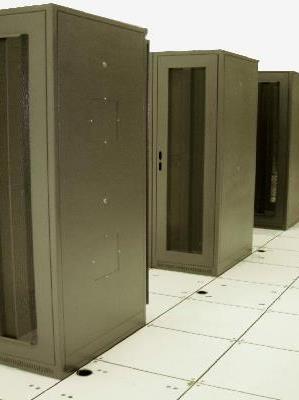

Enterprise Cabinet

The Enterprise is PES's most popular server and storage enclosure. It incorporates some of our most innovative design concepts such as recessed field reversible doors, "Zero Clearance" sides & Coupling, and our signature vent pattern on the front and rear base panels. Our pre-configured frame or full enclosure options make ordering simple. Listed below are our most popular configurations.

Click Here for Enterprise Frames
Enterprise Cabinet

SPECIFICATIONS

  • Fully welded 1.50" x 1.50" tubular steel construction
  • Up to 2000lbs rackable load rating
  • Ranging from 48" (4ft) to 96" (8ft) high
  • Deisgned to meet Zone 4 NEBS requirments
  • 19" or 23" rack mountable
  • Hole spacing per EIA-310D standard
  • Mounting rails fully adjustable, front to rear (cage nut or tapped)
  • Easy lift off, field reversible recessed doors
  • Recessed side panels and "zero clerance" coupling
  • High durability textured powder coat
  • Available in 5 standard colors
    (-WH2 White,-BK2 Black, -GR2 Light Gray, -BL2 Blue and -GRG Dark Gray)
  • Custom colors are also available


Rack
PART #
H
W
D
Description
Space
EC6225CMMSV-*
72"
24"
30"
Enterprise Cabinet, Cage nut rails, Mesh front & Rear Doors, Solid Sides, Vented top
45U
EC7225TMMSV-*
84"
24"
30"
Enterprise Cabinet, 10/32 tapped rails, Mesh front & Rear Doors, Solid Sides, Vented top
45U
EC723CMMSV-*
84"
24"
36"
Enterprise Cabinet, Cage nut rails, Mesh front & Rear Doors, Solid Sides, Vented top
45U
EC723TMMSV-*
84"
24"
36"
Enterprise Cabinet, 10/32 tapped rails, Mesh front & Rear Doors, Solid Sides, Vented top
45U
EC7235CMMSV-*
84"
24"
42"
Enterprise Cabinet, Cage nut rails, Mesh front & Rear Doors, Solid Sides, Vented top
45U
EC7235TMMSV-*
84"
24"
42"
Enterprise Cabinet, 10/32 tapped rails, Mesh front & Rear Doors, Solid Sides, Vented top
45U
* Replace (*) in part number with desired color code
